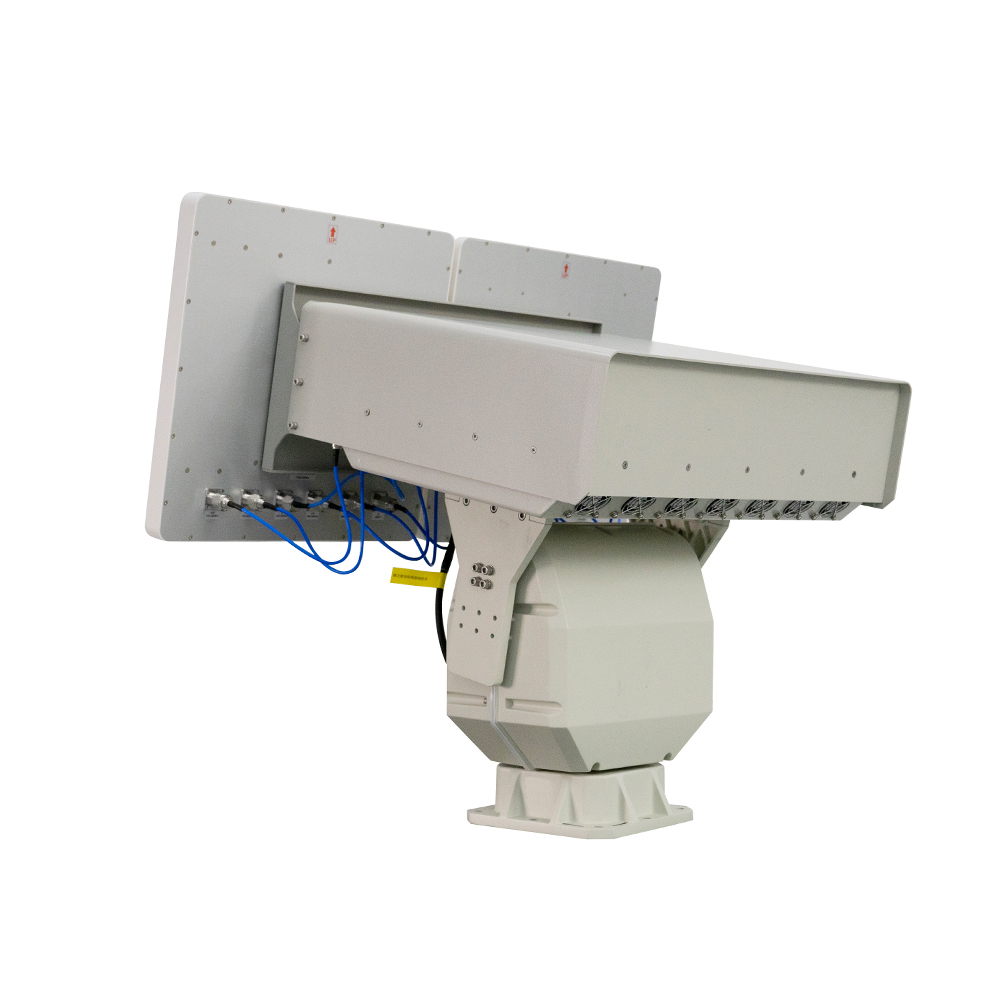

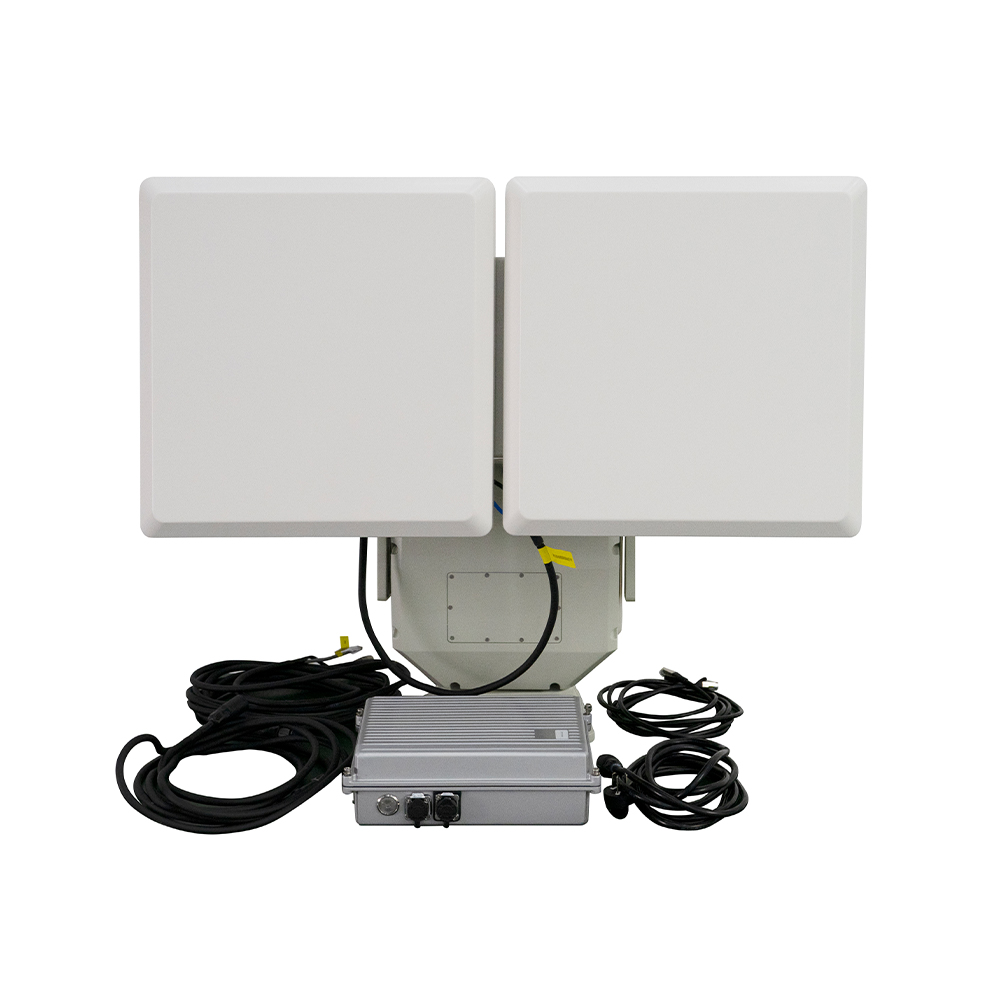

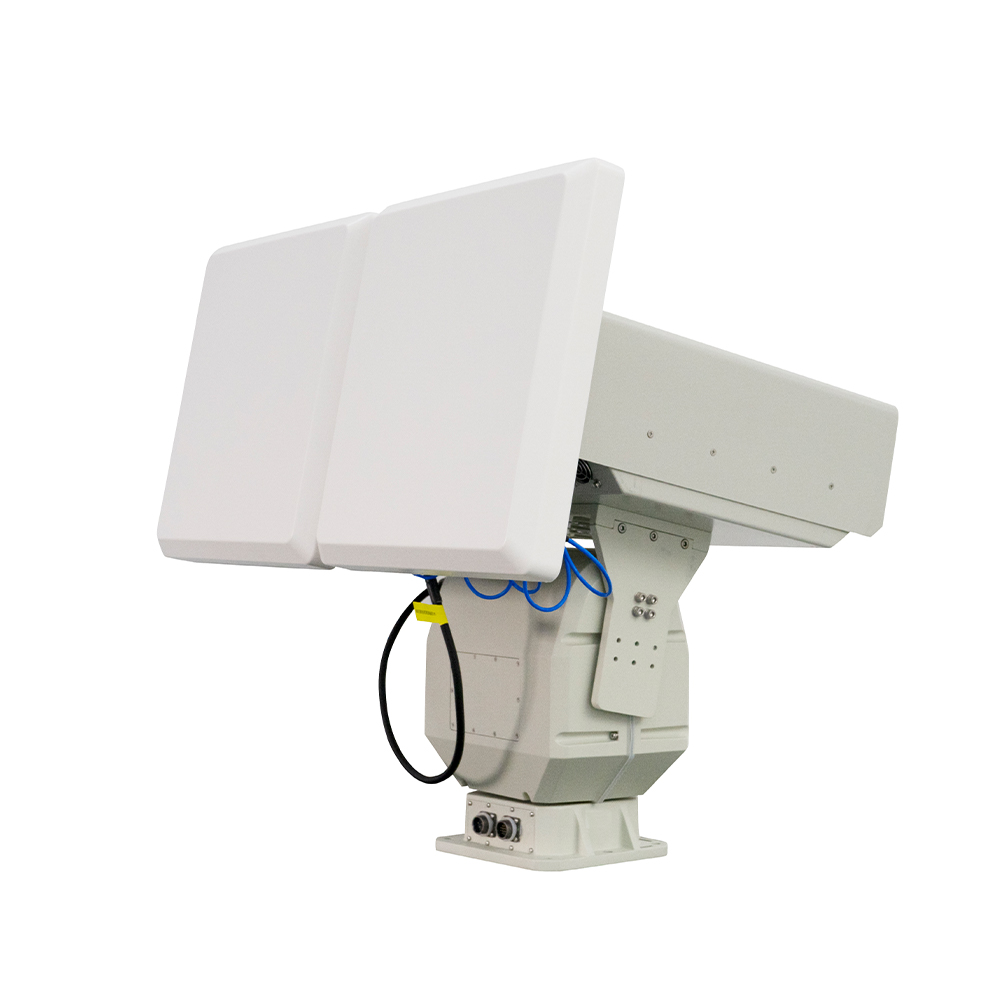

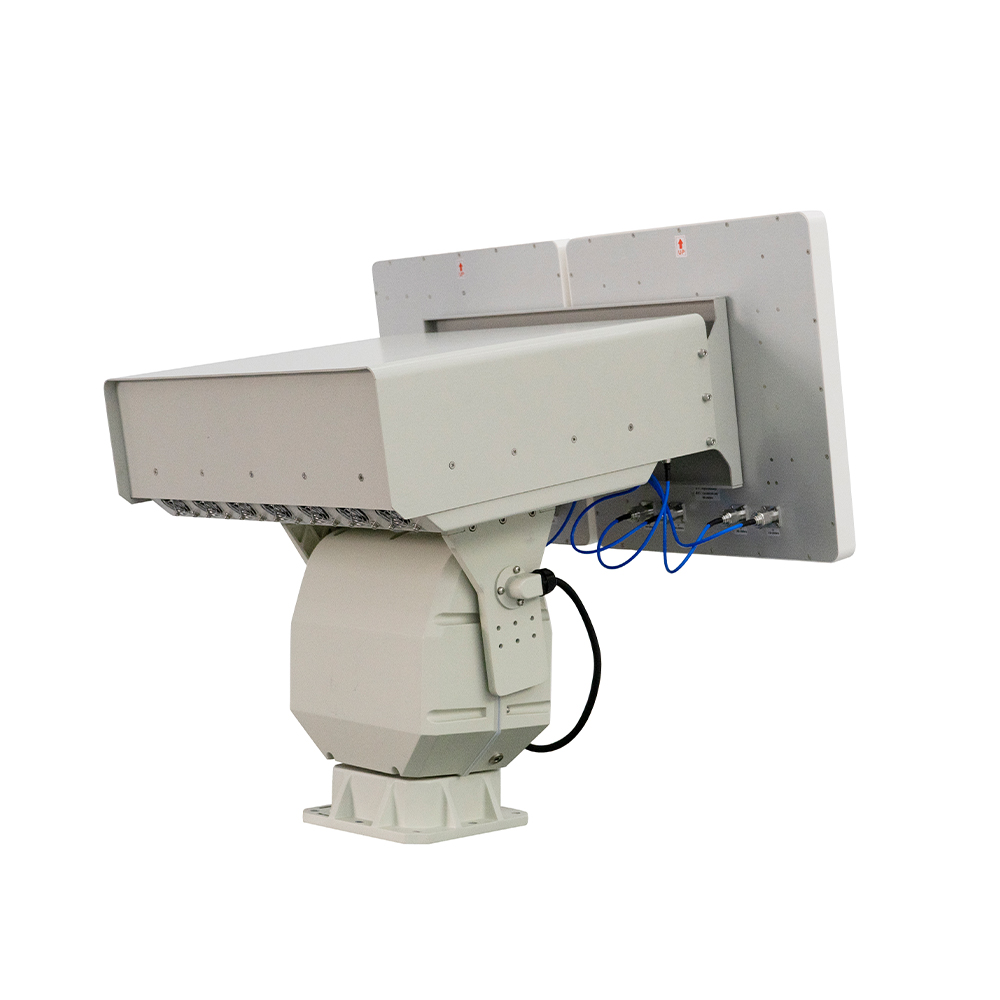

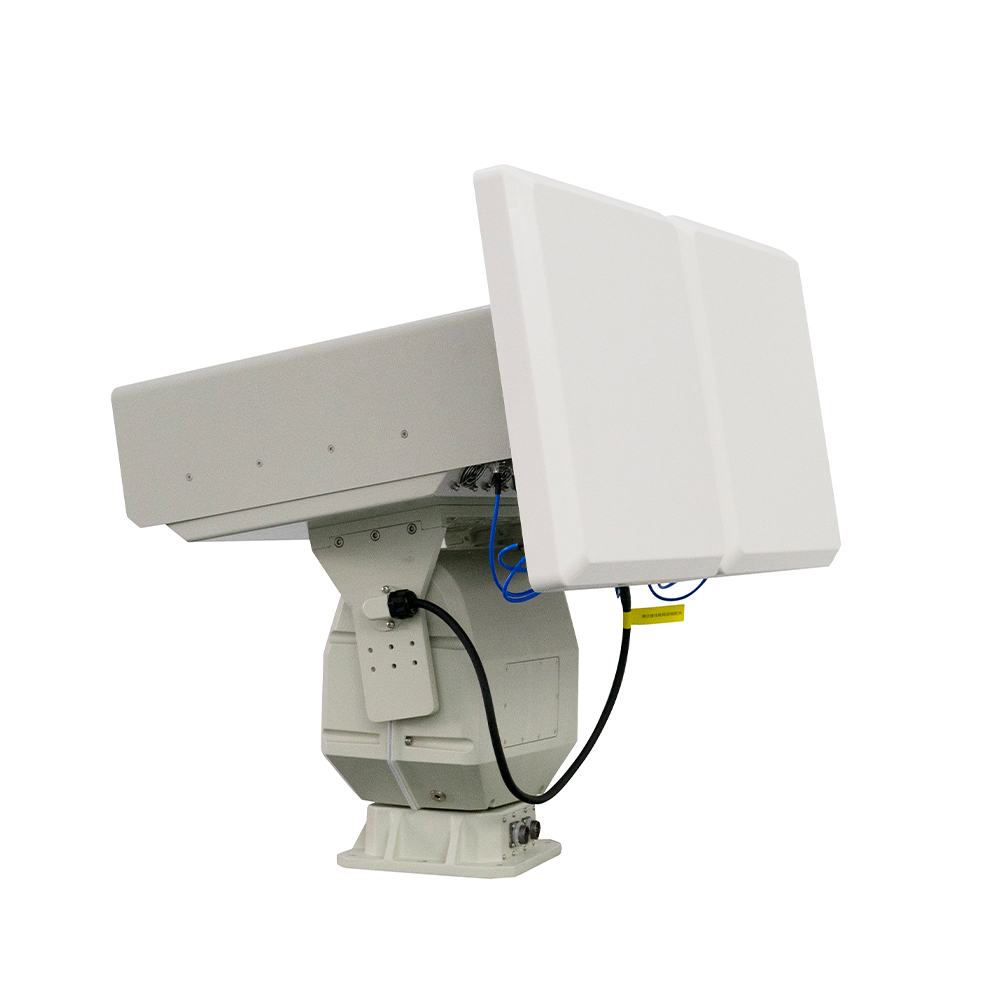

XY2631-B Gimbal-type UAV jamming and deception integrated equipment

inspection of weight Yuntai: 62.5kg Main engine: 45kg Antenna: 2kg ×2
Remote control picture transmission effective interception distance ≥3km
Navigation spoofing fea- ture Functioning bands: GPS (L1), Beidou (B1), GLONASS (L1)
Effective range of navigation deception ≥3km

The Gimbal-type UAV Jamming and Deception Integrated Equipment combines advanced jamming and deception technologies to effectively neutralize and mislead UAVs. With a versatile gimbal design, it offers precise targeting and 360-degree coverage, ensuring continuous operation across various threats. This system disrupts UAV communication, navigation, and control, providing a reliable defense against unauthorized drone activities. Ideal for military, security, and sensitive infrastructure protection, it operates seamlessly in dynamic environments, offering enhanced counter-drone capabilities.

product details

Why Choose Shenzhen Beizhan Security Technology Co., Ltd.

1. Proven High-Tech Credentials

Founded in 2014, Shenzhen Beizhan Security Technology Co., Ltd. is a certified National and Shenzhen High-Tech Enterprise, recognized for its continuous innovation and excellence in the electronic security industry. With nearly a decade of experience, we have established ourselves as a trusted name in UAV defense and signal control technologies.

Full-Spectrum UAV Defense Solutions

Beizhan offers comprehensive anti-drone systems that integrate:
- Real-time UAV detection and classification
- GNSS signal spoofing and deception (GPS, GLONASS, BDS, Galileo)
- RF jamming and control signal disruption
- Position tracking and target localization
- Safe forced landing and return-to-home interventions
These capabilities cover critical applications such as airport protection, border control, public safety, energy infrastructure, and military defense.

Strong R&D and Technical Innovation

Our independent R&D team consists of experts in RF engineering, satellite navigation, signal processing, and embedded systems. We own a number of proprietary technologies and patents, enabling us to rapidly develop customized, scalable, and future-ready solutions for evolving threats.

Certified Quality and Reliability

We maintain a strict quality management system, and our products have passed ISO9001 certification and multiple performance and safety tests. Every solution is developed and produced in-house, ensuring end-to-end control over quality, reliability, and performance.

Global Reach, Local Support

Our solutions are deployed in Asia, Europe, the Middle East, and beyond, serving clients across defense, law enforcement, and infrastructure sectors. We offer 24/7 technical support, on-site services, remote diagnostics, and regular software upgrades.

Customer-Centric Philosophy

At Beizhan, we believe in long-term partnerships. We work closely with our clients to understand their challenges and provide tailor-made, cost-effective, and operationally practical solutions that fit real-world mission needs.

Choose Shenzhen Beizhan Security — where advanced technology meets uncompromising security.

description2

Product Parameters

No.	project	metric
1	inspection of weight	Yuntai: 62.5kg Main engine: 45kg Antenna: 2kg ×2
2	dimension con-trol	Yuntai: 464mm×325mm×405mm Main engine: 630mm×442mm×190mm Antenna: 390mm×390mm×50mm
3	emission frequency	Channel 1: 2.400GHz ~ 2.4835 GHz; The second channel: 5.725GHz ~5.850 GHz; Channel 3: 1.555GHz ~ 1.620 GHz; Channel 4: 1. 15GHz ~ 1.25GHz; Channel 5: 900 MHz ~ 930 MHz; Channel 6: 423 MHz ~ 443 MHz;
4	radio-frequency power	The transmission power of each channel shall not be lower than: 2 Channel 1: 100w Channel 2: 80w Channel 3: 10w; (navigation jamming frequency band) Channel 4: 30w; Channel 5: 80w; Channel 6: 50w
5	Remote control picture transmission effective interception distance	≥3km
6	Navigation spoofing fea- ture	Functioning bands: GPS (L1), Beidou (B1), GLONASS (L1)
7	Effective range of navigation deception	≥3km
8	Interference mode	Emergency landing, evacuation (can independently control any channel)
9	Remote control functionality	The equipment is equipped with networking function and can be controlled remotely
10	Linkage function	It can control the rotation of the pan-tilt unit and point to the direction of the target UAV by receiving the target position information sent by the radar or photoelectric system to complete the directional electronic jamming
11	Antenna main lobe width	Horizontal beam width ≥20 ° Vertical beam width ≥20 °
12	Indicators for rotating clo- uds	Horizontal Angle 360 ° Panning Angle-30 ° ~+60 °
13	data interface	Baidu network port
14	Power adaptabi	AC220V±10%，50Hz~60Hz
