F8 Ultra-Wideband Handheld Drone Detector 100MHz–8GHz FPV & DJI UAV Detection Device with Bluetooth

• RF coverage: 100MHz–8000MHzwith 1MHz step, minimizing blind spots
• Specially optimized for:

• OFDM HD digital video transmission from mainstream drones (DJI, Autel, etc.)
• FM analog video transmission used by FPV racing / DIY drones
  • Displays key parameters such as drone type, frequency (MHz), signal strength
  • Industry-leading low false alarm rate in analog FPV detection

• Captures analog FPV videoin the 100MHz–8000MHz band in real time
• Two display modes:

• Local display on the device’s built-in screen
• External display via magnetic interface to a larger monitor (optional screen & cable)
  • Enables direct viewing of the FPV camera feed for investigation, evidence collection and situational awareness

• Supports optional directional antennafor manual “search and locate” operations
• Users can rotate the device and observe live changes in signal strength to quickly determine the direction of the FPV drone
• Especially useful for locating illegal FPV operators or drone launch points

• Side magnetic interface supports connection to backpack-type or other external jamming devices(optional cable)
• When a drone is detected, the F8 can output a 3.3V high-level control signal to trigger the external jammer
• Helps build an integrated “detection + countermeasure”workflow (actual jamming performance depends on external device)

• Operating temperature:-20°C to +60°C
• Storage temperature:-40°C to +85°C
• Protection rating:IP54 (resistant to dust and splashing water)
• Suitable for long-term outdoor deployment in complex environments

• High-performance 2900mAhdetachable Li-ion battery
• Up to ≈7 hourscontinuous operation per battery (typical conditions)
• Supports 35W Type-C fast charging, full charge in about 1 hour
• Back-mounted battery with charge level indicator button for quick status checks

• Built-in Bluetooth module for wireless data transfer
• Supports connection to a companion mobile app (e.g. DX-SMART, Android / iOS)
• Enables remote viewing and management of detection data on smartphones or tablets
• Convenient for patrol teams and command centers needing live updates

RF & Detection

• Receiving frequency range: 100MHz – 8000MHz
• Video interception range: 100MHz – 8000MHz analog video
• Recognized signal types:

• OFDM HD video transmission signals (e.g. DJI, Autel)
• FPV FM analog video transmission signals
  • Typical detection distance: ≥1km
• Actual distance varies based on frequency band, UAV transmit power, antenna gain
• With high-gain directional antenna, longer detection distances are achievable
  • Alarm modes: vibration + sound
  • Real-time spectrum display with color-coded signal strength
  • Drone list display (type, frequency, signal strength, up to recent 5 alerts)

Power & Battery

• Power supply: detachable Li-ion battery
• Battery capacity: 2900mAh
• Charging interface: Type-C, supports 35W fast charging
• Charging time: approx. 1 hourto full
• Runtime: approx. 7 hours(single battery, typical)

Logging & Interface

• Log recording: internal storage for event logs
• Firmware upgrade & data export: dedicated magnetic cable
• Bluetooth: on/off configurable via menu
• Fan: internal cooling fan, on/off configurable via menu

Controls & Operation

• Operation method: button control

• Power: long press 3s to power on, long press 5s to power off
• Volume adjustment, brightness adjustment, menu navigation, log & mode settings
  • Alarm list + real-time spectrum + FPV video interception modes

Environmental & Mechanical

• Operating temperature: -20°C to +60°C
• Storage temperature: -40°C to +85°C
• Protection rating: IP54

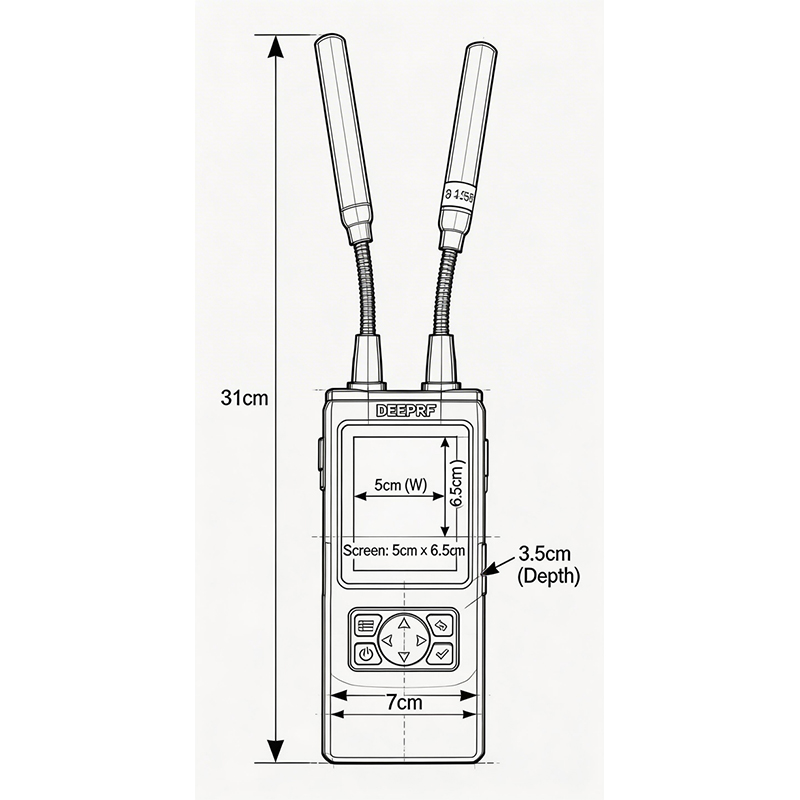

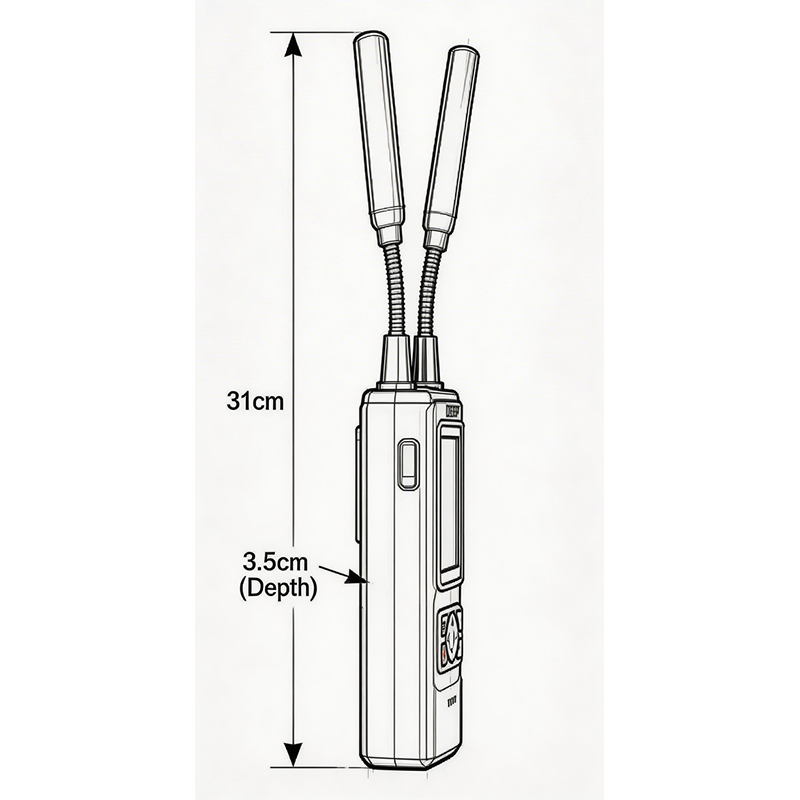

• Device dimensions: approx. 164mm × 44mm × 68mm(main unit without antennas)
• Device weight: approx. 580g(including battery and antennas)

Ports & Connectors

• Left magnetic port: firmware upgrade & data export via dedicated cable
• Right magnetic port:

• External screen video output (optional screen & connector)
• External jamming device control (via optional control cable, 3.3V high-level trigger)

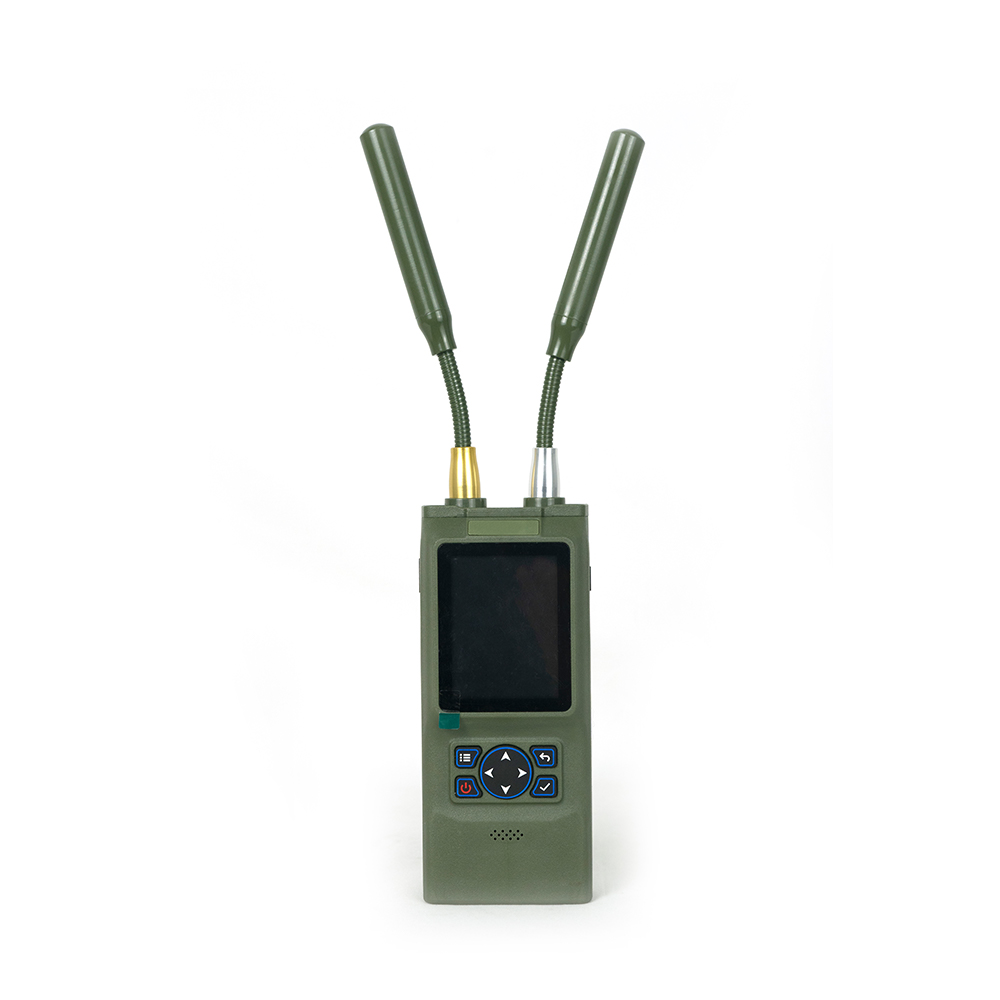

  • Top antenna bases:
• Gold base: 100MHz–8000MHz detection antenna
• Silver base: 2.4GHz / 5.8GHz detection antenna

1) Security at Large Events
Used at marathons, open-air concerts, sports events and rallies. Security staff carry the F8 to monitor the RF environment in real time. The device detects unauthorized DJI/Autel drones as well as FPV analog drones, provides audible/vibration alarms and live spectrum, and can output FPV video feeds to a larger screen in the command area.

2) FPV Drone Monitoring & Enforcement
Ideal for law enforcement agencies that need to monitor illegal FPV racing drones or long-range analog FPV flights. The F8’s ability to detect analog signals, intercept video, and support directional antennas helps officers locate the FPV pilot and gather video evidence.

3) Prisons & Critical Infrastructure Protection
Suitable for prisons, detention centers, power plants, airports and other sensitive facilities. The F8 can detect incoming drones and, when integrated with compatible jamming equipment via the magnetic control interface, help build an efficient “detect + counter” system against airborne threats and contraband drops.

4) Outdoor & Harsh Environment Patrols
Thanks to its IP54 protection and -20°C to +60°C operating temperature, the F8 is well-suited for border patrols, coastal defense, and other outdoor missions requiring long battery life, fast recharging, and ruggedized design.
