XY-2338 Spherical anti drone device (7 frequency)
Anti Drone Device

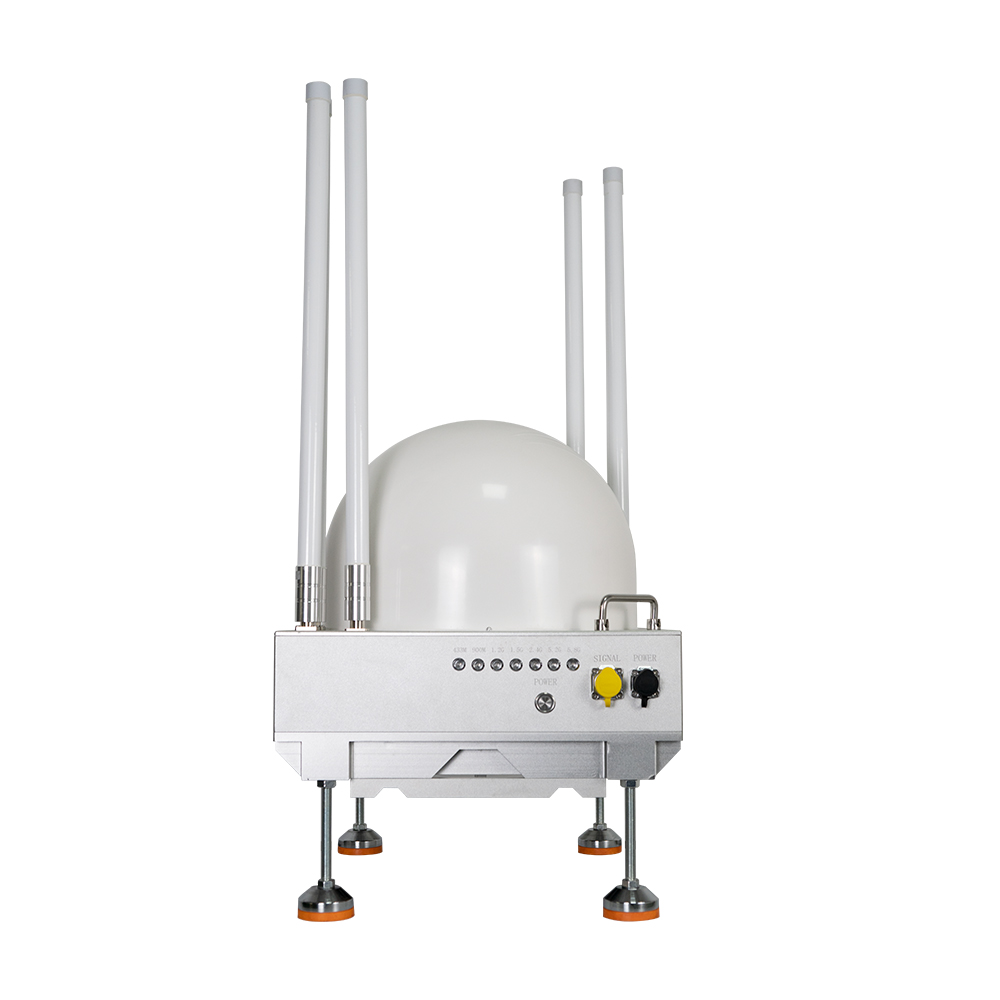

XY-2338 Spherical anti drone device (7 frequency)

  • Name Ball type anti dronedevice
  • ltem No XY-800-A
  • Voltage AC100-240V/DC24V
  • Size 430*430*400(mm)
  • Product weight 27kg
  • Battery External power supply

The Spherical Anti-Drone Device (7 Frequency) provides advanced detection and neutralization capabilities across seven frequency bands. This all-in-one solution is designed to detect, track, and disrupt unauthorized drone activity in critical areas. With a spherical design, it offers 360-degree coverage and robust performance in challenging environments, ensuring effective defense against various drone threats. Ideal for military, security, and high-risk areas, it operates seamlessly in both day and night conditions, enhancing security and operational control.

bg1
01

Why Choose Shenzhen Beizhan Security Technology Co., Ltd.

1. Proven High-Tech Credentials

Founded in 2014, Shenzhen Beizhan Security Technology Co., Ltd. is a certified National and Shenzhen High-Tech Enterprise, recognized for its continuous innovation and excellence in the electronic security industry. With nearly a decade of experience, we have established ourselves as a trusted name in UAV defense and signal control technologies.

主图06

Full-Spectrum UAV Defense Solutions

Beizhan offers comprehensive anti-drone systems that integrate:
- Real-time UAV detection and classification
- GNSS signal spoofing and deception (GPS, GLONASS, BDS, Galileo)
- RF jamming and control signal disruption
- Position tracking and target localization
- Safe forced landing and return-to-home interventions
These capabilities cover critical applications such as airport protection, border control, public safety, energy infrastructure, and military defense.

主图07

Strong R&D and Technical Innovation

Our independent R&D team consists of experts in RF engineering, satellite navigation, signal processing, and embedded systems. We own a number of proprietary technologies and patents, enabling us to rapidly develop customized, scalable, and future-ready solutions for evolving threats.

主图08

Certified Quality and Reliability

We maintain a strict quality management system, and our products have passed ISO9001 certification and multiple performance and safety tests. Every solution is developed and produced in-house, ensuring end-to-end control over quality, reliability, and performance.

主图09

Global Reach, Local Support

Our solutions are deployed in Asia, Europe, the Middle East, and beyond, serving clients across defense, law enforcement, and infrastructure sectors. We offer 24/7 technical support, on-site services, remote diagnostics, and regular software upgrades.

主图03

Customer-Centric Philosophy

At Beizhan, we believe in long-term partnerships. We work closely with our clients to understand their challenges and provide tailor-made, cost-effective, and operationally practical solutions that fit real-world mission needs.

Choose Shenzhen Beizhan Security — where advanced technology meets uncompromising security.

description2

Product Parameters

Name Ball type anti dronedevice ltem No XY-800-A
Channel RC433mhz,50w
RC890-940mhz,40w
1.2G,30W
GPS,20W
2.4G,4bands ,40w*3+50w*1
5.2G,4bands ,40w*3+50w*1
5.8G,4bands ,40w*3+50w*1
Function forced landing,return to flight
Jamming effectratio 10:01 Output power 530W
Weight 27KG Size 430*430*400(mm)
Voltage AC100-240V/DC24V Work temperature -22℃ 1+60℃
Battery External power supply Waterproof grade IP67
Large jammingrange About 2000-3000m,
Directional strike 3km
Omnidirectional strike 2km(FH frequency drone is 1km
such as DJJ mavic3)
