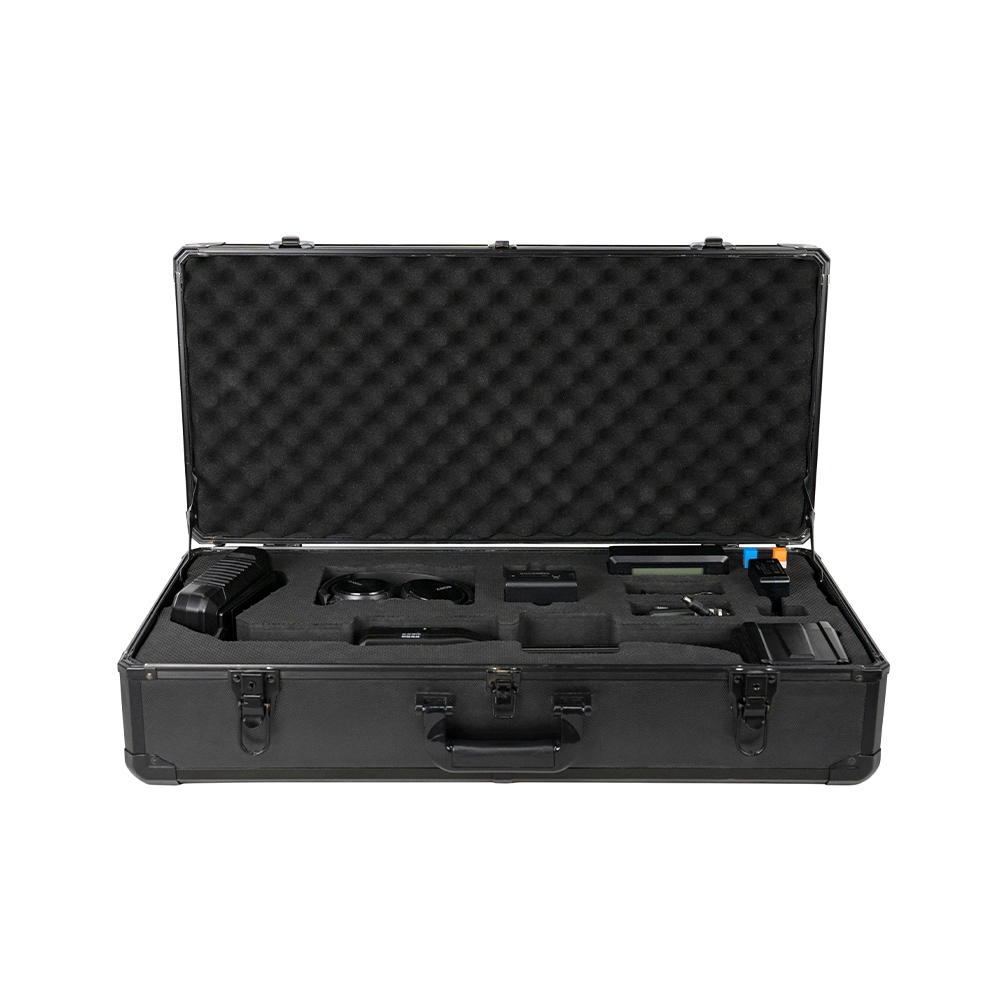

XY-C-AT-801 Standard Version Non-Linear Node Detector (4).jpg

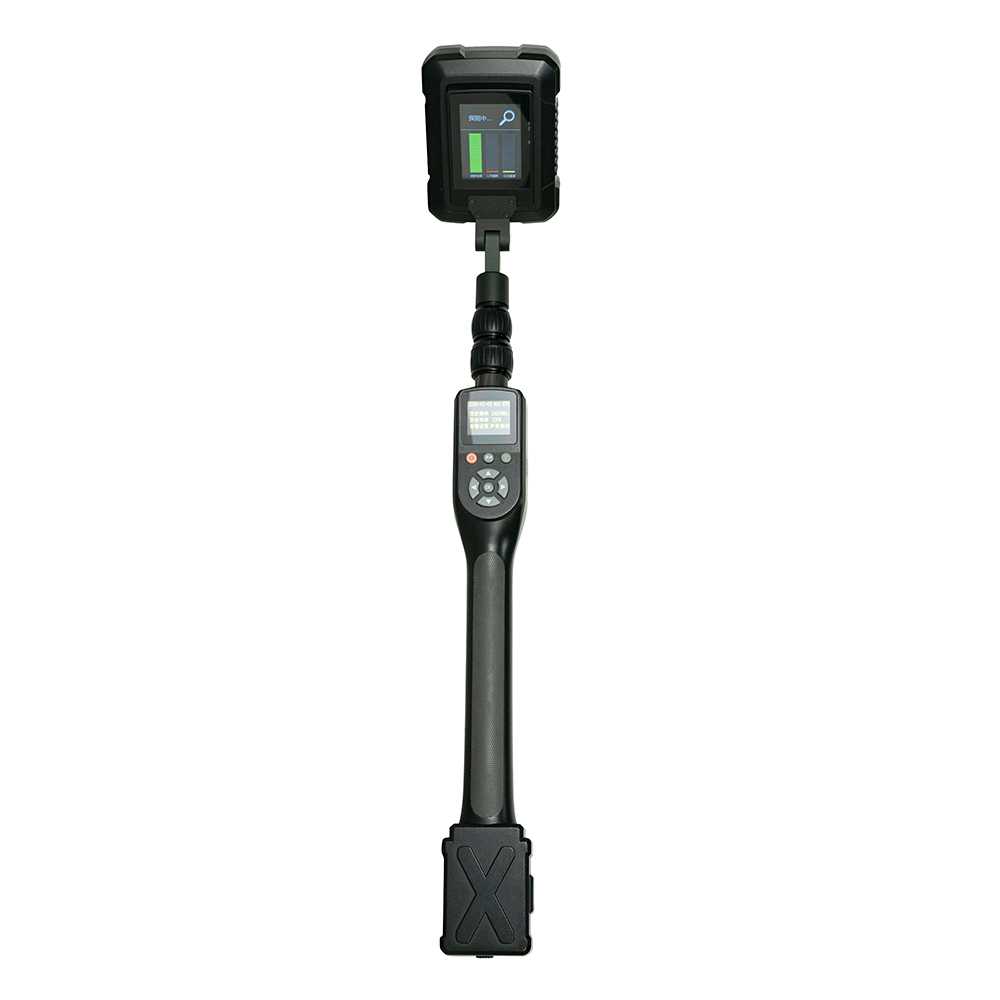

XY-C-AT-801 Standard Version Non-Linear Node Detector (1).jpg

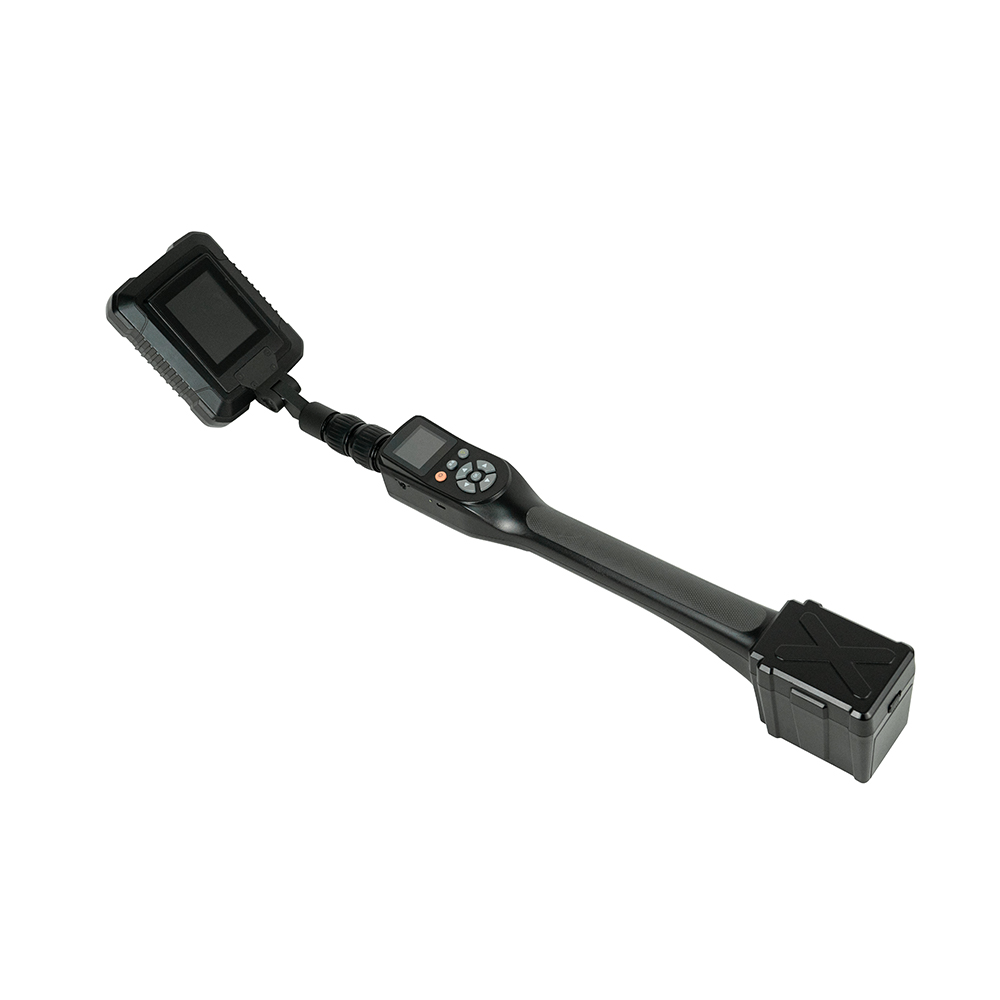

XY-C-AT-801 Standard Version Non-Linear Node Detector (2).jpg

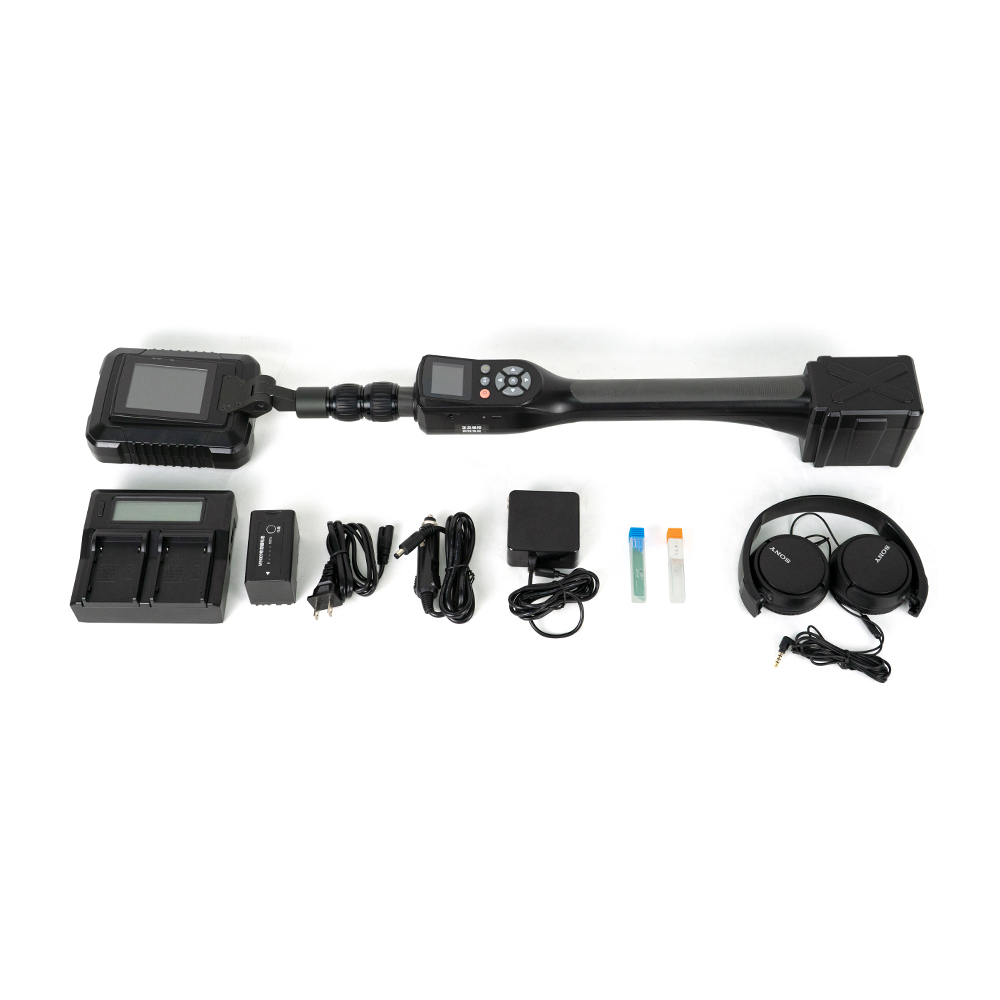

XY-C-AT-801 Standard Version Non-Linear Node Detector (3).jpg

XY-C-AT-801 Standard Version Non-Linear Node Detector

Operating Voltage: 7.4V
Frequency Range: 2.4GHz -2.5GHz
Product Weight: <1.52kg ±0.05kg
Operating Temperature: -30°C to 55°C
Operating Humidity: ≤93%, non-condensing

This device is a domestically produced, novel non-linear junction detector capable of locating any electronic equipment concealed within walls, floors, ceilings, light fixtures, furniture, or containers. It can detect such devices regardless of whether they are transmitting signals or powered on, issuing alerts through multiple means including visual displays, vibrations, and audible alarms. This enables detection personnel to focus their attention on the concealed targets.

product details

Why Choose Shenzhen Beizhan Security Technology Co., Ltd.

1. Proven High-Tech Credentials

Founded in 2014, Shenzhen Beizhan Security Technology Co., Ltd. is a certified National and Shenzhen High-Tech Enterprise, recognized for its continuous innovation and excellence in the electronic security industry. With nearly a decade of experience, we have established ourselves as a trusted name in UAV defense and signal control technologies.

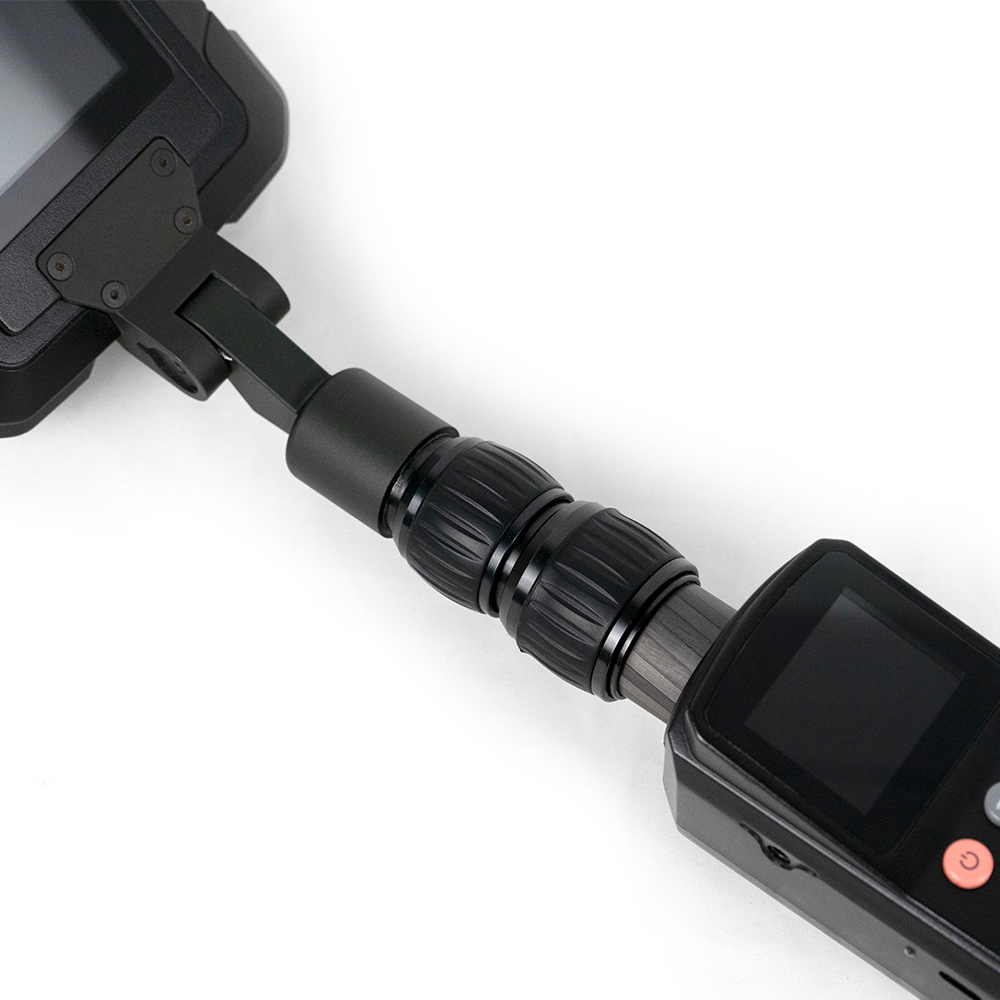

XY-C-AT-801 Standard Version Non-Linear Node Detector (3)

Global Reach, Local Support

Our solutions are deployed in Asia, Europe, the Middle East, and beyond, serving clients across defense, law enforcement, and infrastructure sectors. We offer 24/7 technical support, on-site services, remote diagnostics, and regular software upgrades.

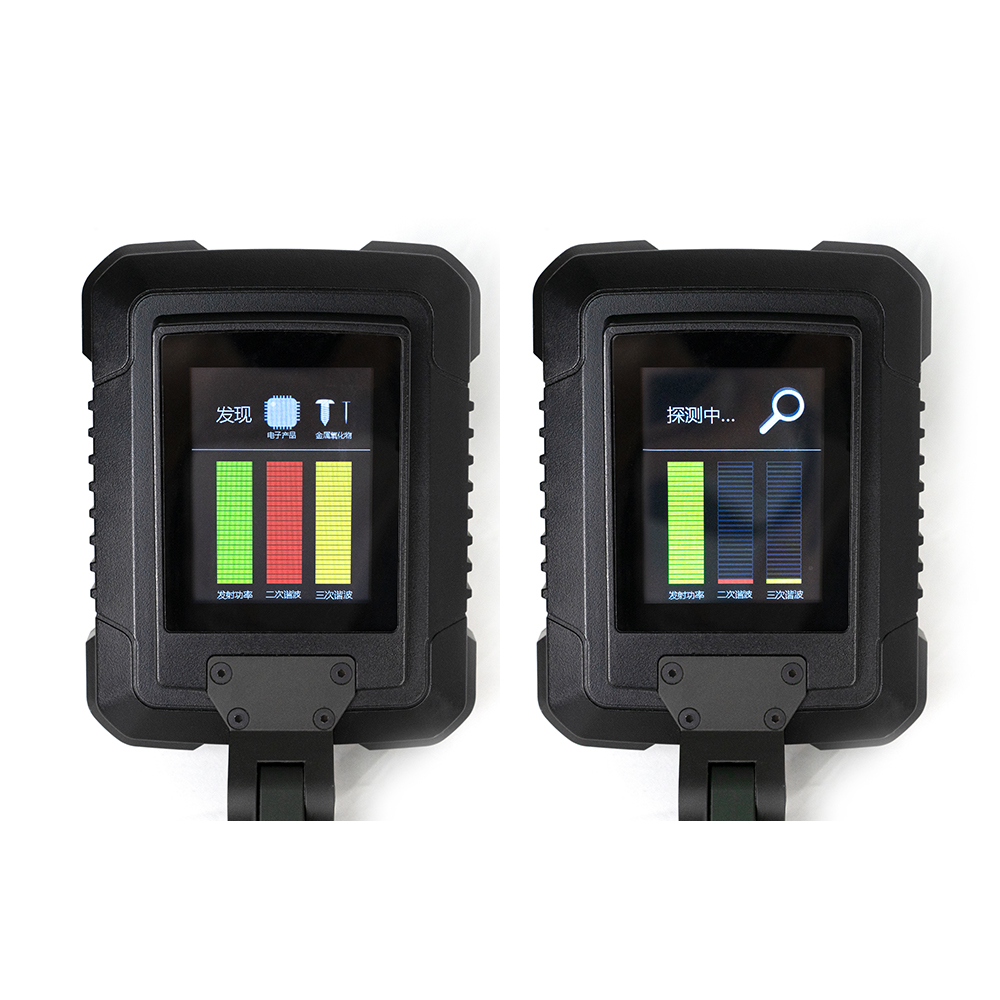

XY-C-AT-801 Standard Version Non-Linear Node Detector (1)

Customer-Centric Philosophy

At Beizhan, we believe in long-term partnerships. We work closely with our clients to understand their challenges and provide tailor-made, cost-effective, and operationally practical solutions that fit real-world mission needs.

description2

Product Parameters

Parameters	Technical indicators
Product Operating Frequency Band	2.400GHz
Operating Voltage	7.4V
Frequency Range	2.4GHz -2.5GHz
Receive 2nd–3rd Harmonic Range	4.8GHz-5GHz,
Receive 2nd–3rd Harmonic Range	7.2GHz-7.5GHz
Pulse Mode Transmission Power (Maximum)	0~4W(ERIP)
Receive Sensitivity	≤-140dBm
Battery Life at Maximum Power Consumption	4 hours per block
Battery Type	Replaceable lithium battery
Detection Range	>6 metres, compliant with Class C products as specified in GA1236-2015 standard
Penetration Capability	Penetrates 370mm brick walls, compliant with Class C products as specified in GA1236-2015 standard
Interface	LED display indicates received harmonic signal strength
	Supports audio alerts, compatible with headphones
	Supports vibration alerts
Product Dimensions	(750mm × 114mm × 108mm) ±5mm
Outer Packaging Dimensions	(700mm × 330mm × 180mm) ±10mm
Product Weight	<1.52kg ±0.05kg
Operating Temperature	-30°C to 55°C
Operating Humidity	≤93%, non-condensing
