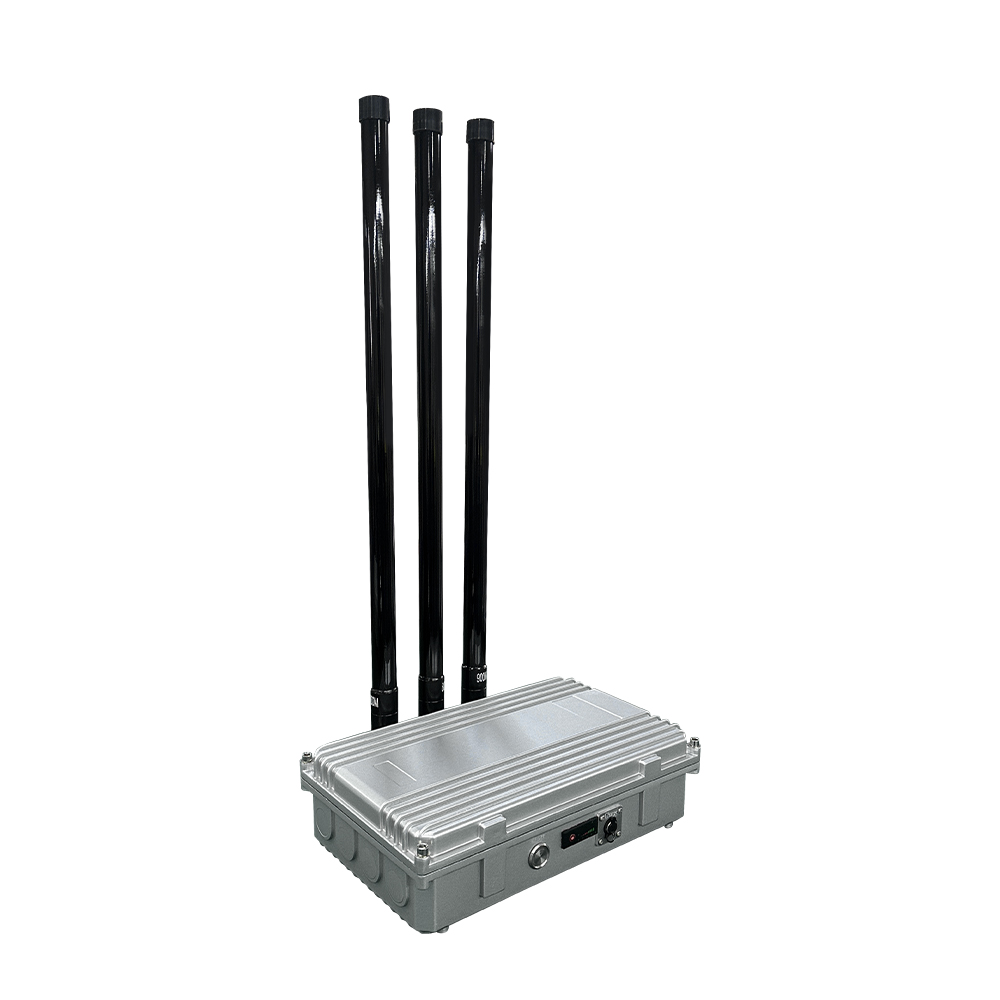

XY2434Vehicle Anti Drone Device-Three Band
Anti Drone Device

XY2434Vehicle Anti Drone Device-Three Band

  • Product Size: 32*21.5*9cm
  • Machine Weight: 3.25kg
  • Countermeasure Radius: 100-1000m
  • Working Temperature: -20℃/+45℃

The compact low-frequency vehicle-mounted drone jammer is a mobile counter-drone system designed to interfere with the positioning and control capabilities of unmanned aerial vehicles (UAVs). Utilizing low-frequency electromagnetic waves, it targets navigation systems like GPS, BeiDou, and GLONASS, disrupting the drone’s ability to orient itself. Once these signals are blocked, most drones will automatically hover, return to their starting point, or initiate a forced landing.

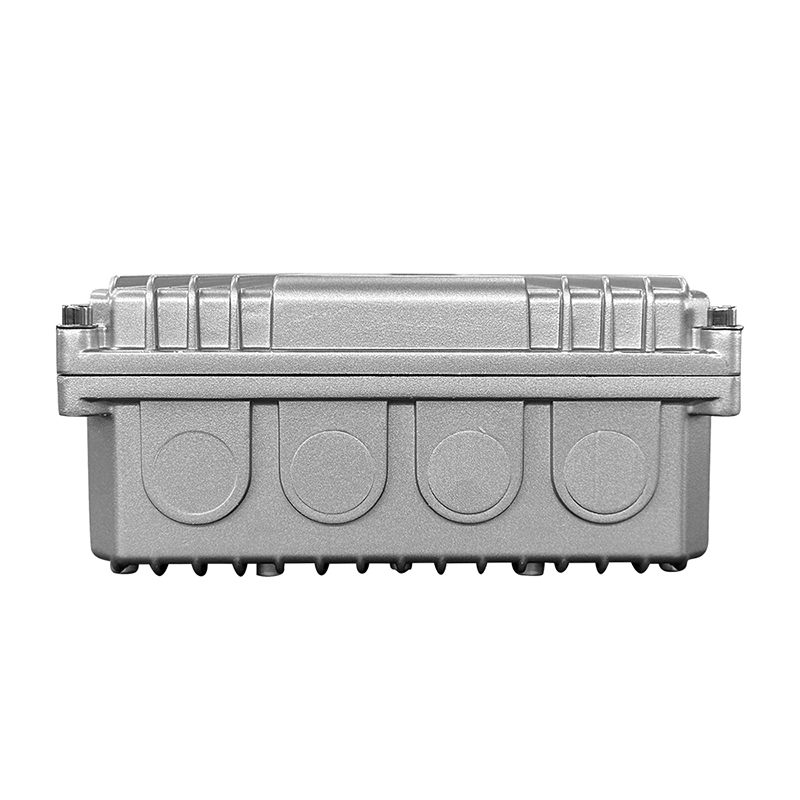

XY2434Vehicle Anti Drone Device-Three Band1
XY2434Vehicle Anti Drone Device-Three Band

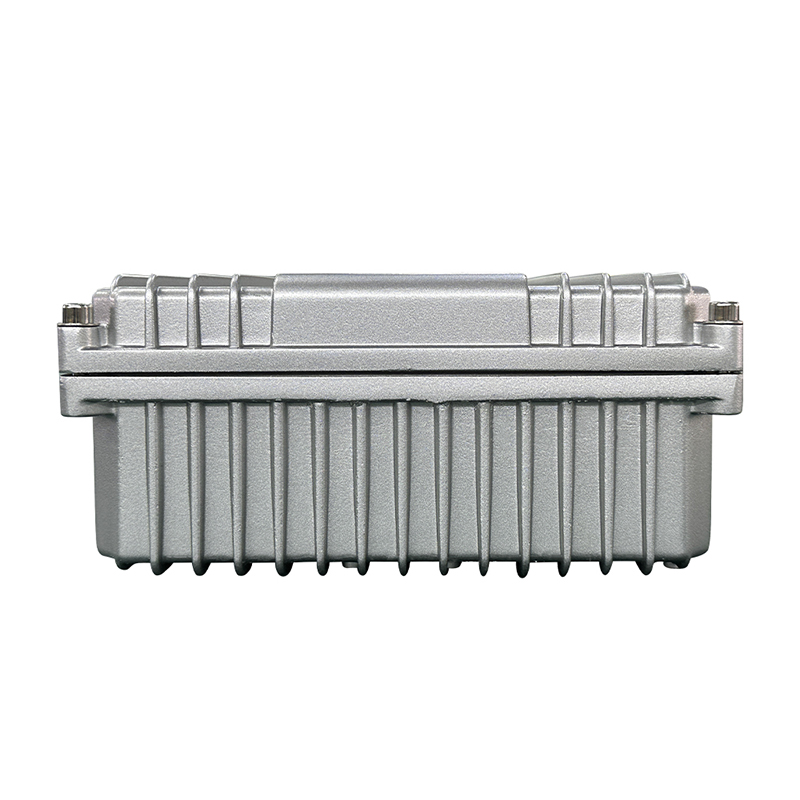

XY2434Vehicle Anti Drone Device-Three Band2
010203

Product features

Engineered for vehicle integration, this jammer is typically installed on patrol cars, SUVs, or tactical vehicles. It draws power from the vehicle's onboard power supply and offers both manual control via onboard panels and remote operation through wireless interfaces. Some models are equipped with automatic scanning and jamming features, capable of responding to drone threats without manual targeting. With an effective range reaching up to 3 kilometers, the system is especially valuable for mobile security teams operating in dynamic or remote environments.

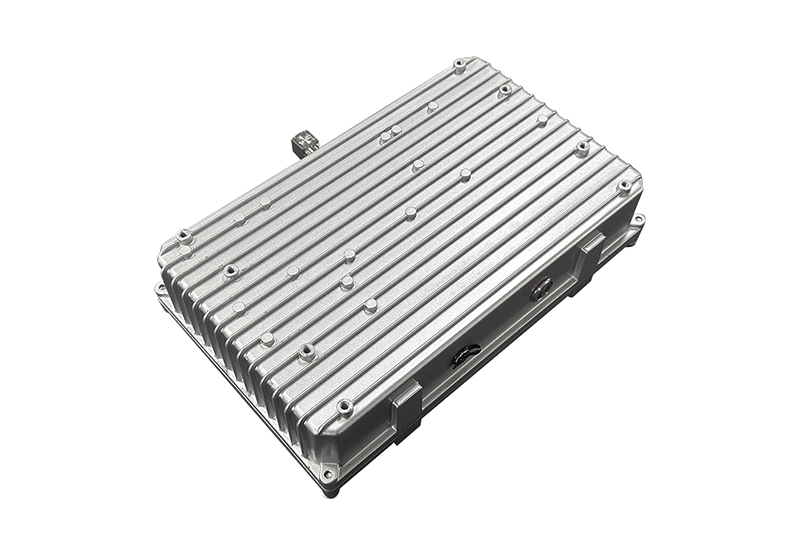

XY2434V-5

Product advantages Ⅰ

Ideal deployment scenarios include border control operations, military site protection, prison perimeters, critical infrastructure defense, and VIP convoy security. The small form factor allows for discreet installation on rooftops or inside cargo areas, maintaining operational flexibility while on the move.

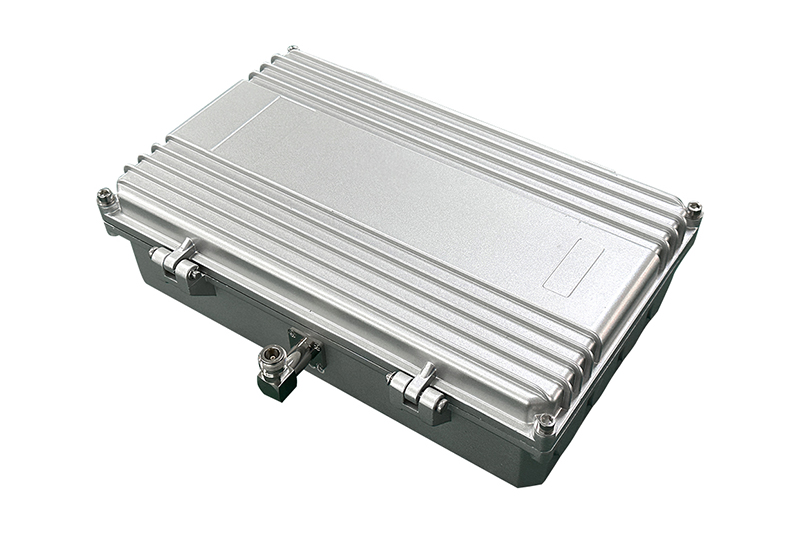

XY2434V-1

Product advantages Ⅱ

Compared to fixed or directional jammers, vehicle-mounted low-frequency systems are better suited for wide-area suppression of drone navigation signals. They offer rapid deployment and high mobility, but may require additional high-band jamming tools if image transmission or remote piloting links need to be neutralized.

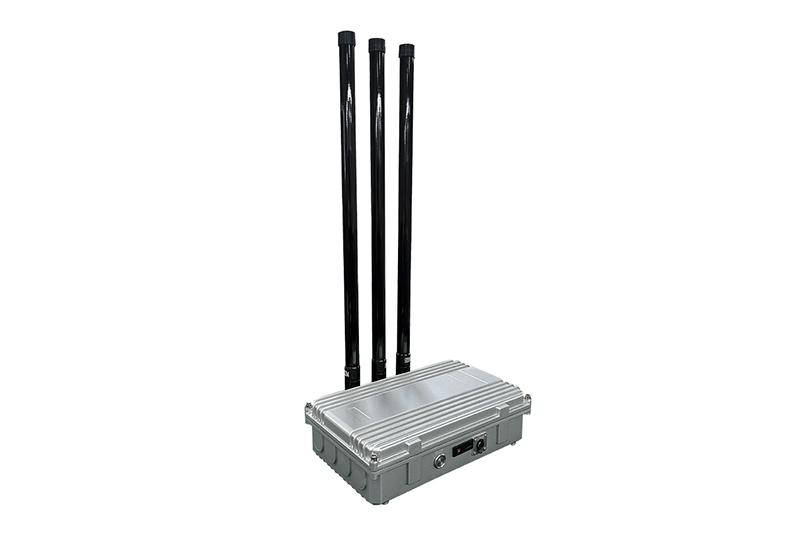

XY2434V-6

Product advantages Ⅲ

Overall, this type of system offers a robust and adaptable approach to protecting sensitive airspace from unauthorized UAV incursions, especially in mobile or fast-changing security scenarios.

Product Parameters

Product name

Vehicle Anti Drone Device

Customized

Support

Interference frequency

700-800mhz

800-900mhz

900-1000mhz
50W

Function

Emergency landing, return flight, cut off video

Countermeasure radius

100-1000m

Output power

400W

Product weight

3.25kg

Product Size

32*21.5*9cm

Overall weight of the machine

5.3kg

Overall machine dimensions

37*23*12cm

Power supply voltage

The charger is 220V to DC29.4V

Battery capacity

5000mAH

Working hours

About 45 minutes (continuous work)

Working temperature

-20℃/+45℃

description2
